|Material:||ADC12 Aluminum Alloy||Color:||Silver|
|Max Airflow:||320 Cbm /h||Max Vacuum:||440 Mbar|
|Max Pressure:||570 Mbar||Frequency:||50/60 Hz|
|Voltage:||220/380 Or 380-420v|
air vacuum blower,
regenerative air blower

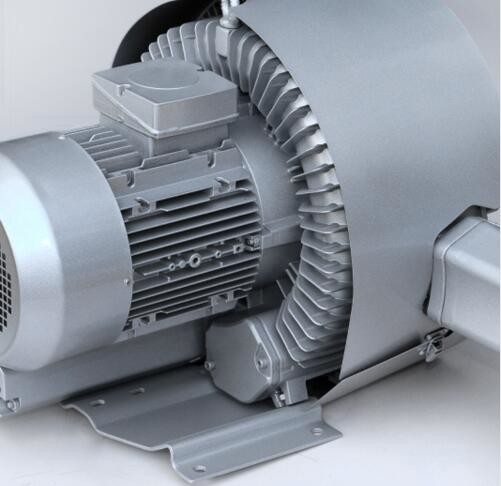

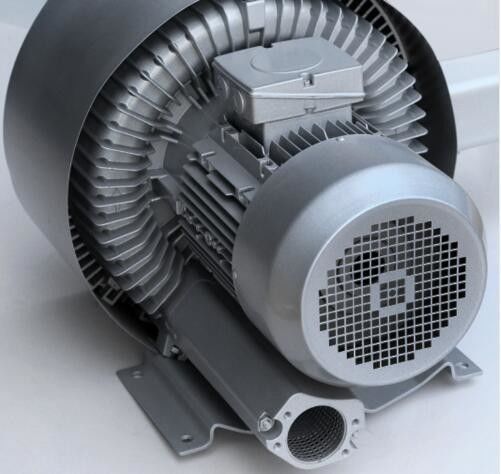

7.5kw Aluminum Industrial Air Ring Blower With Air Suction Vacuum Pump
1. Casing is made by ADC12 aluminum alloy ,excellent quality and strong enough .
Special appearance design ensure good looking and heat dissipation .
2. IP55 Insulation Class , H insulation system , custmized motor data design ,Twice Winding testing
ensure low amperage and long time motor using life .
3. Customized Impeller size design much reduce the portion of rubbing failure and noise during operaiton .
4. 8.8 Class Nuts standard ensure all fasten parts can be well connected and durable .
5. IE1 ,IE2 ,IE3 Motor for selecting .
6. 380/415V or 220/380v or 230/460v or 480v ,440v ,575v or other 3 phase voltage ,
220 -240v or 110/220v single phase can be customzied against various requirement .
7. Special design for silencer grately reduce the noise inside of it.
8. All blowers must be strictly veryfied before shipping to customers .
Performance Curve :
Install Dimension :
Production Details :
Blower Applications :
