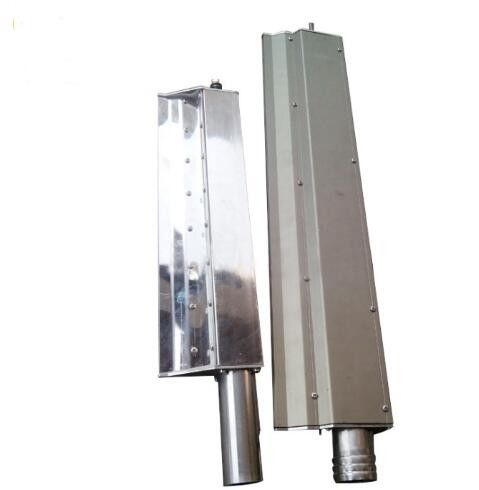

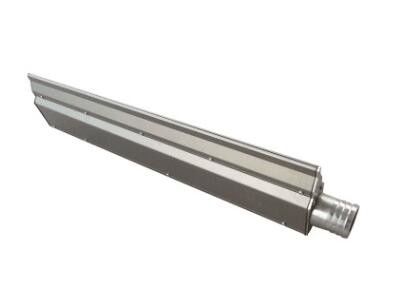

High Performance Industrial Air Knife For Turbine Air Pump 30cm Length
What is an air knife?
An air knife is a metal tube with an inlet to allow for the connection of an air source, and a long, continuous slit to provide a high velocity and high impact air stream. Though they have many different applications, common uses are removing dust, industrial debris and liquids typically found following a wash, rinse or product filling operation.
Air knives incorporate a tear drop design to minimize the internal turbulence of air entering the knife while projecting it in a highly controlled manner through the discharge. As air enters the knife, the lack of sharp edges within the knife minimizes pressure loss and turbulence while the air moves along the walls and is concentrated at the discharge.
This creates a laminar flow exit velocity that is able to project much farther before dissipating and causes less excitation of the surrounding air. The air then impacts the target of the application and is able to rapidly shear away water and debris, as well as thermal transfer applications.
What is our advantage ?
1). The airknife that we produce is SUS304 Stainess steel ensure more stronger, more precesion .
2). The Width and Length are adjustable . The minimum of width is 0.1mm ,the longest legth is reach to 6 meters .
3). Adopt High Technology enable adopt with high technology ensure precision reach to 3 % more or less
4). Various Applications : Widely used for pumps and compressors
5). High Pressure Withstand Around 5 Kgf/cm2 , High Temperature Resistance around 500 degree,directly can be connected with Hot Producer Machine ,Various Inlet direction ,the Air goes from the Air Knife side or the front or the back side.
What is the Size and Dimension ?
We are able to produce the Length of the Air Knife ranges from 10cm to 6 m ,for customized size ,pls kindly let our sales people know , we will provide the best solution for your applicaitons .
